This will be a quick post outlining the steps needed to extend the AD schema in order to create custom attributes. This will require Schema Administrator or Enterprise Administrator rights. The Schema Master holder DC will also need to be online and available. Let’s get started.

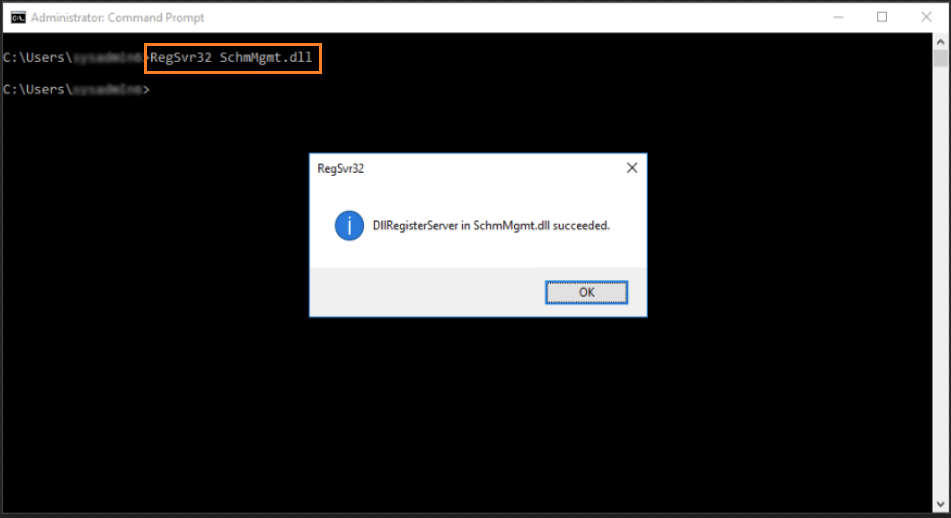

Launch an elevated Command Prompt, type the following and press Enter to register the Schema Management DLL:

RegSvr32 SchmMgmt.dll

Now, launch the Microsoft Management Console by typing MMC.exe in the Start Menu or the Run dialog box by pressing the keys Windows + R

In MMC, click File>Add/Remove Snap-In

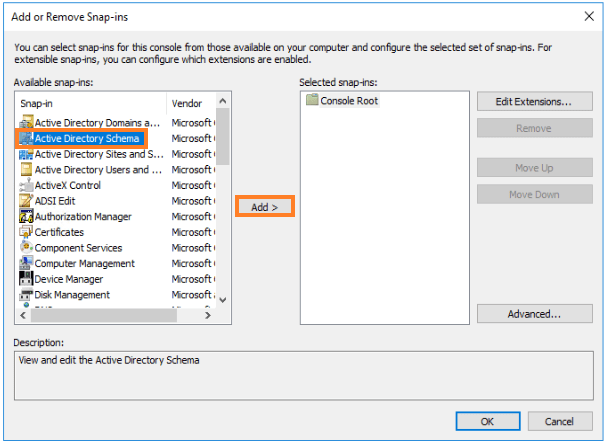

You should now see Active Directory Schema, select it and click Add. Click Ok

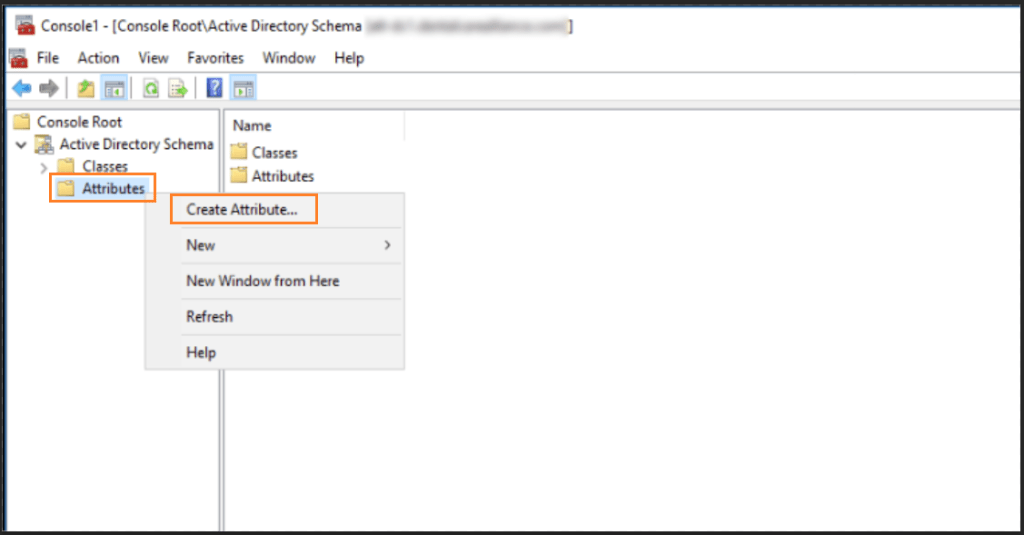

Narrow down to Active Directory Schema>Attributes, right click Attributes and select Create Attribute

You will be shown a warning since these changes are permanent. Read the warning carefully

In the Create New Attribute dialog box, enter in the details of the new attribute

Common Name: The name of new attribute

LDAP Display Name: Auto-filled by the Common Name. Notice the hyphen has been removed automatically

Unique x500 Object ID: See below for more information

Syntax: Unicode String is most commonly used

You can also specify the minimum and maximum length of characters

Unique X500 Object ID

To extend the AD schema successfully, you will need to obtain a root OID. Microsoft has provided a script will generate one for us

The script can be found here: https://learn.microsoft.com/en-gb/windows/win32/ad/obtaining-an-object-identifier-from-microsoft?redirectedfrom=MSDN

Copy the script from the Microsoft website and paste into Notepad. Save the file as .vbs and double-click it to generate the unique ID

Once you have the unique ID, paste it into the Unique X500 Object ID field

Update User Class

Now that we have created the new attribute, we need to assign it to the User class attribute

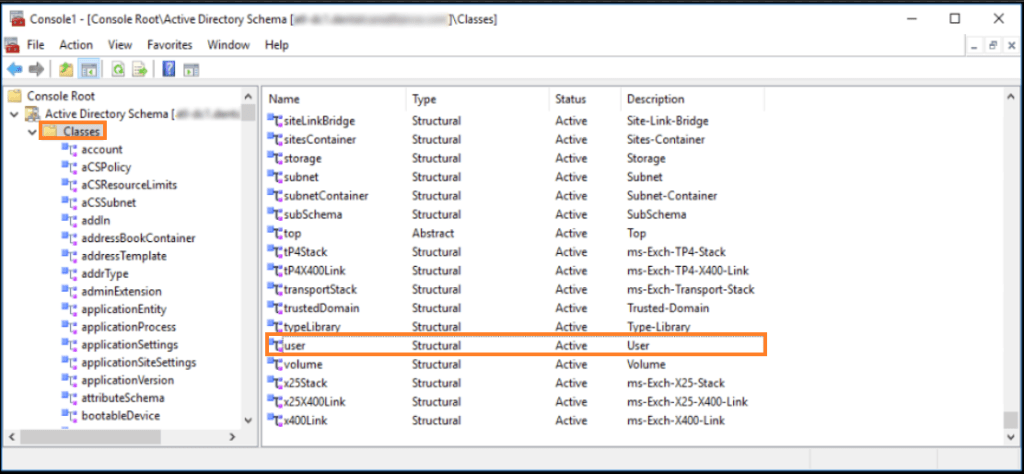

Narrow down to Active Directory Schema>Classes>User and double-click

In the user Properties dialog box, select the Attributes tab and click Add to search for and add the newly created attribute. Once it has been added, click OK

At this point, you will need to wait for the new attributes to be replicated to all other domain controllers

You may need to restart the Active Directory Domain Services in Services.msc for Shema changes to take effect

To view the new attributes in Active Directory, make sure you have Advanced Features enabled and you are viewing the user object directly from the OU. If you attempt to search for a user object, the Attributes tab will not appear

You can also use PowerShell to search for the attribute:

Get-ADUser username -Properties newattribute
